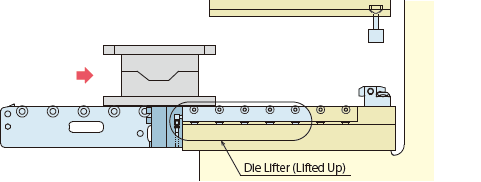

Transfer the die to the bolster.

Transfer the die to the bolster .
With the pre-rollers and die lifters,minimal force is required to move the die. Die lifters are set in the T -/U- slots.

Die Lifter ： Hydraulic pressure

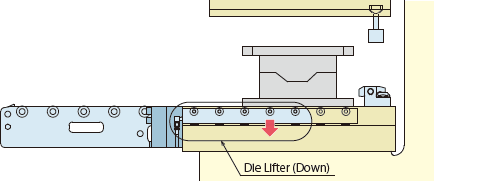

Set the die on the bolster.

With push-button operation, the die lifter releases and the die makes contact with the bolster.

Die Lifter ： Hydraulic Pressure

Set the automatic clamps.

Set the slide to the bottom dead center .
Slide automatic clamps on the T -slot and bring them near the die.

Automatic Clamp ： Hydraulic Pressure

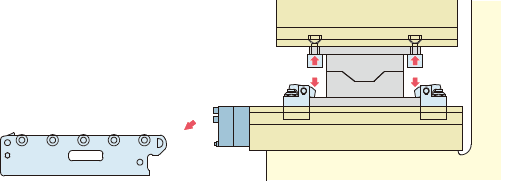

Lock the die.

With push-button operation, automatic clamps lock the die.
After safety confirmation, the pre-roller can be removed.

Automatic Clamp ： Hydraulic Pressure
