Variation

•

  ModelTLA-2Standard Model



  Standard Model
  Clamp with 90°Swing
  • 2CAD DXF

  • 3CAD Parasolid X_T
  • 3CAD IGES
  • 3CAD STEP
•

  ModelTLA-2-PBalance Lever Option



  The lever clamps workpieces on both sides.
  • 2CAD DXF

  • 3CAD Parasolid X_T
  • 3CAD IGES
  • 3CAD STEP
•

  ModelTLA-2-QLong Stroke Option



  The long stroke which is selectable by every 5mm is applicable to a variety of work shapes.
  • 2CAD DXF

  • 3CAD Parasolid X_T
  • 3CAD IGES
  • 3CAD STEP
•

  ModelTLA-2-YSwing Angle Selectable Option



  Available with
  30°/45°/60° Swing Angle
  • 2CAD DXF

  • 3CAD Parasolid X_T
  • 3CAD IGES
  • 3CAD STEP

Product Information

■Cross-sectional Structural Drawing

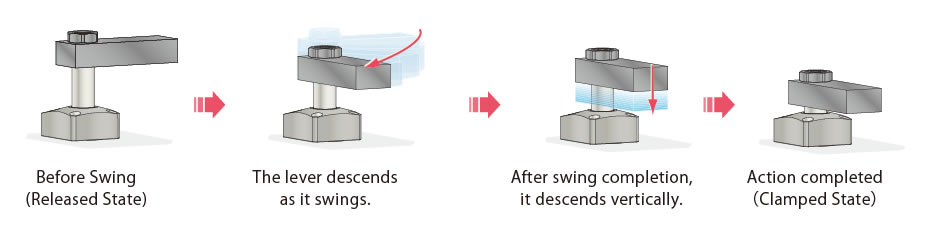

■Action Description

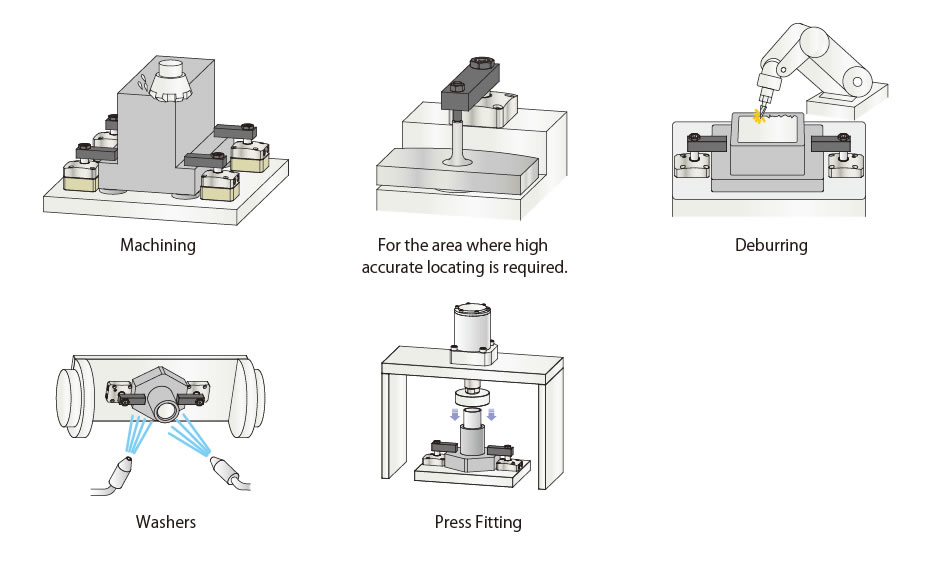

■Application Example
