Non-Leak Coupler with Pilot Check Valve
【Compact】

ModelBGA/BGB


1～7MPa

BGA/BGB
Pilot check valve makes a smooth connection and disconnection of coupler without reaction force. It holds the pressure at fixture side even when the supply of pressure is stopped with coupler connected conditions.
  • Catalog PDF

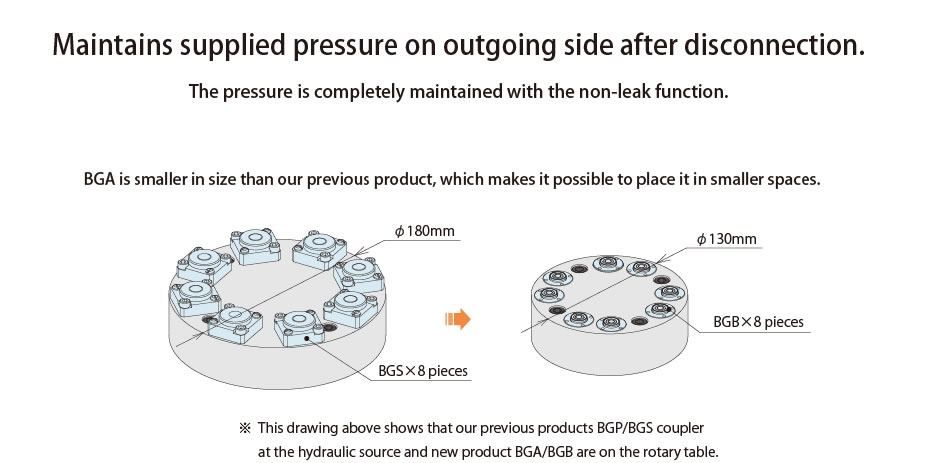

Product Information

z1

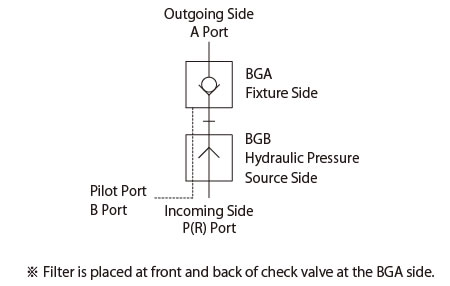

■Circuit Symbols

g1

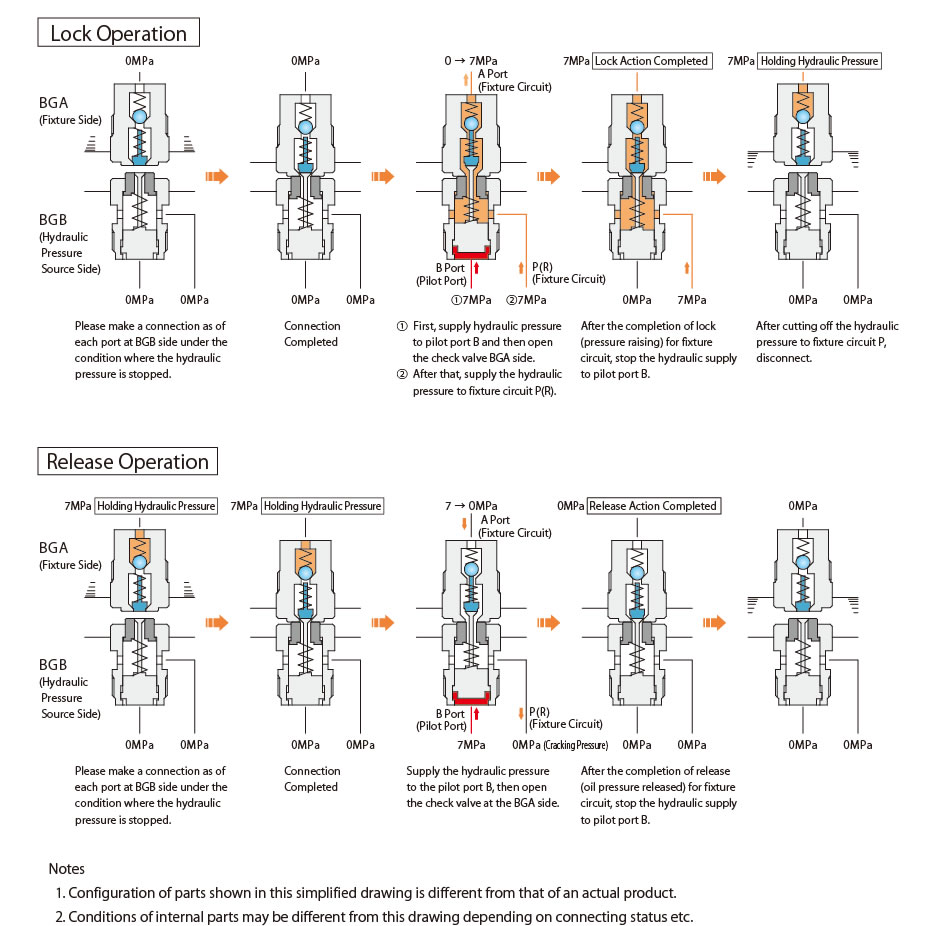

■Action Description

b1
