Products KWCS
Swing Clamp
TLB-2
Double Action Swing Clamp
【High Pressure: Bottom Flange】
Model
TLB-2
Double Action
7~35MPa
High Rigidity・Long Life・High Accuracy with Strong Turning Mechanism
>
Product Information
>
Featured Recommendations
Variation
Model
TLB-2
Standard Model
Standard Model
Clamp with 90° Swing
2CAD DXF
3CAD Parasolid X_T
3CAD IGES
3CAD STEP
Model
TLB-2-P
Balance Lever Option
The lever clamps workpieces on both sides.
2CAD DXF
3CAD Parasolid X_T
3CAD IGES
3CAD STEP
Model
TLB-2-Q
Long Stroke Option
The long stroke which is selectable by every 5mm is applicable to a variety of work shapes.
2CAD DXF
3CAD Parasolid X_T
3CAD IGES
3CAD STEP
Model
TLB-2-Y
Swing Angle Selectable Option
Available with 30° 45° 60° Swing Angle
2CAD DXF
3CAD Parasolid X_T
3CAD IGES
3CAD STEP
Product Information
■

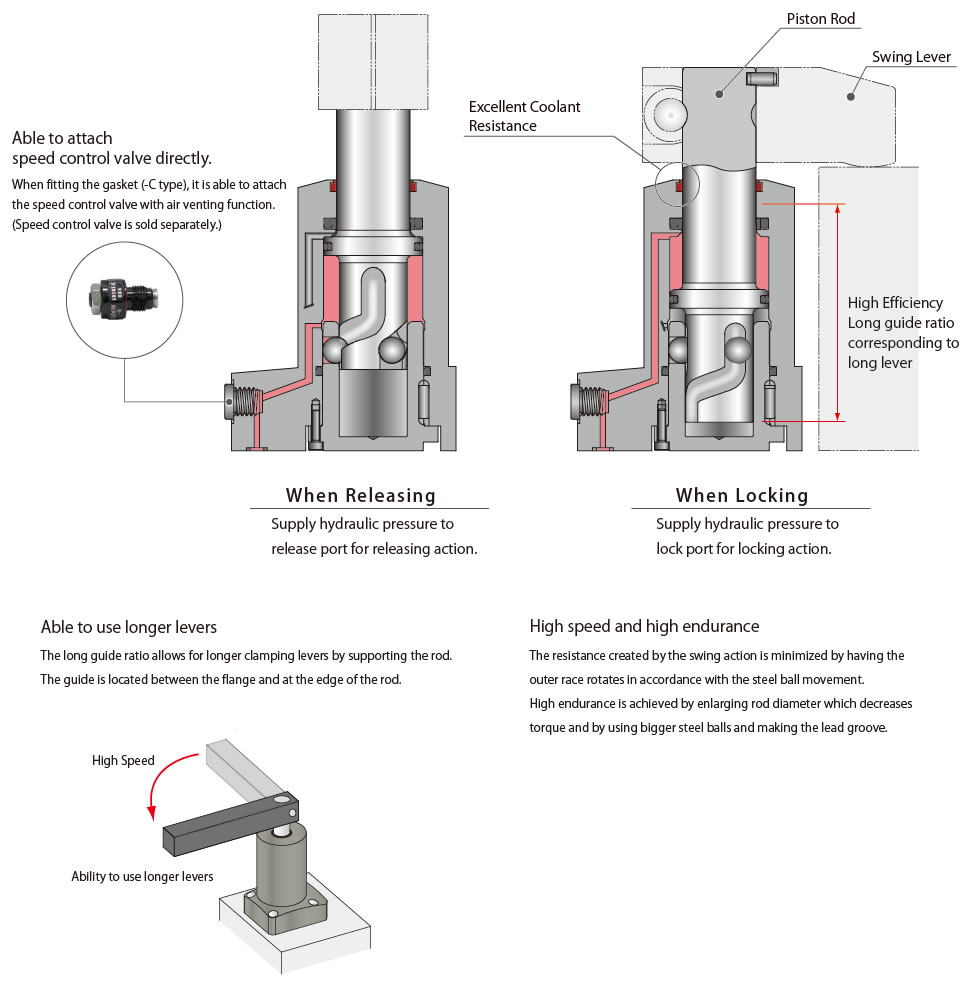

Cross-sectional Structural Drawing
■

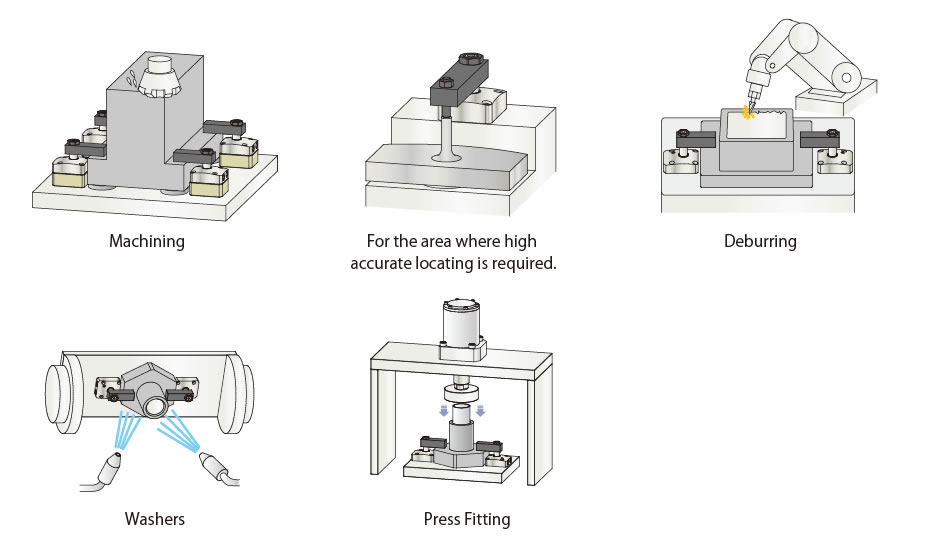

Application Example
